Create colored and textured meshes of archaeological artefacts using mobile 3D scanning

3D scan technology is used for a wide range of applications in the archaeological environment, like archiving, preserving, reproduction and sharing - analogue and virtual. In all these areas, optical 3D scanning solutions make visible what the human eye can't see. Follow the process here to see how detailed a mesh can actually get by adding color and texture.

The base for all archeology projects is high-accuracy scan data. Whether small objects, like stones, or large parts, like an elephant jaw, the creation of an authentic mesh is possible. Even the digital assembly of multiple parts becomes feasible with the scan data in the software.

To visualize the generation of colored and textured meshes in archeology, a little figurine of a mammoth is scanned.


1. Step:  Photogrammetry

Preparation is key for photogrammetry. In this case we used a lightbox to ensure good lighting conditions without any interference from the environment. For maximum ease of use we placed the object on a rotation table. Taking photos from all perspectives becomes fast and intuitive. For precise and stable photogrammetry as well as the automatic mapping of the taken pictures on the mesh later on, scale bars and coded reference markers are used. All the prep work ensures a realistic color representation without any lens distortion.

The collection of photos is now realized with the digital reflex camera.

Fig. 1: Photogrammetry with digital reflex camera
Fig. 2: Photogrammetry setup with lightbox, scale bars and rotation table

2. Step:  Scanning the original

After photogrammetry is successfully completed, scanning the object is necessary. Here the GOM Scan 1 is being used. It collects high-detailed data and the different measuring volumes allow for the scanning of various part sizes. Furthermore, its lightweight and compact design is predestined for the mobile use.
Here also the rotation table comes into use for a semi-automated and therefore simplified application.
Pre-define the rotation steps (here we used 8). Optionally, you can operate the workflow assistant in the inspection software which guides you through the process.

After finishing the scanning, polygonization of the scan data follows. From it you create an exact mesh – ready for the finishing touches.

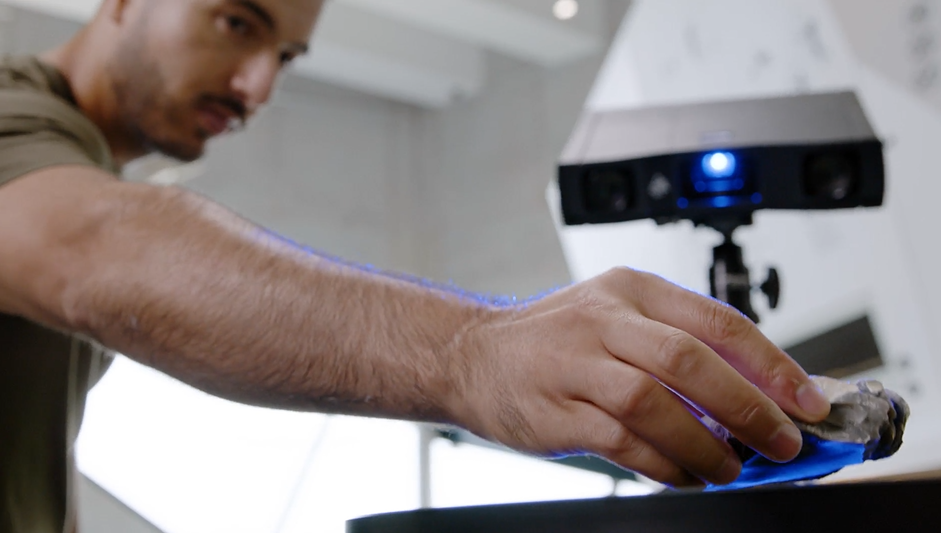

Fig. 3: Scanning setup
Fig. 4: Scanning process on rotation table

3. Step:  Finalizing mesh in the software

You are now just one step away from a high detailed mesh – showing the color and texture of the objects. In the inspection software the goal is achievable in no time. The photos taken during the photogrammetry process aid now in the realistic visualization of the scanned item. With just a few button clicks, the collected visual information can be transferred to the plain mesh in the software. You literally receive a digital twin of the part which is as true to the original as possible.

Fig. 5: Colored and textured mesh in the inspection software

Check the inspection software now

You want to convince yourself of the endless evauation possibilities of the inspection software in the ZEISS Quality Suite? Download the software here and try for yourself.

It’s only the beginning: next steps with the final mesh

Now you have your colored and textured mesh, but what’s next?
Have you thought about starting a rendering of the mesh? Or maybe 3D printing is on the agenda. Whatever the task, with the accurate mesh, further work will proceed successfully.

Experience GOM Scan 1

Get to know our 3D scanning solution GOM Scan 1
and your possibilities with it now.
